400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR transceiver module

coherent optical transceiver 0-75℃

QSFP-DD transceiver with extended temperature range

उत्पत्ति के प्लेस:

ग्वांगडोंग, चीन

ब्रांड नाम:

Hilink

प्रमाणन:

CE Rohs

मॉडल संख्या:

400G-QSFPDD-ZR

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद का विवरण
प्रोडक्ट का नाम:
400G-QSFPDD-ZR
आधार - सामग्री दर:
400 ग्राम
परिचालन तापमान:
0 से 75 ℃
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा
1 टुकड़े
मूल्य
Send Inquiry know latest price
पैकेजिंग विवरण
प्लास्टिक बॉक्स+कार्टन
प्रसव के समय
5-8 वर्किंग डे
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, अलीपाय, पेपैल/वीचैट/ट्रेड एश्योरेंस
आपूर्ति की क्षमता
2000 टुकड़े/सप्ताह
संबंधित उत्पाद
हमसे संपर्क करें
86-755-8317-6243
अब संपर्क करें
उत्पाद का वर्णन
400G QSFP-DD ZR Coherent Transceiver 0-75℃
Product Overview

The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications to 400G. The 400G QSFP-DD ZR is designed to 400G 120Km DCI DWDM applications without inline chromatic dispersion compensation.

Features
  • QSFP-DD MSA compliant type 2B package
  • Up to 120Km transmission distance
  • Client signal 400GbE or 4x100GbE
  • Line Modulation format 400G DP-16QAM
  • C-band tunable, supports 100/75GHz grid spacing, support 0.1GHz fine tuning
  • TX power -13dBm~-9dBm tunable
  • Support ingress LF hold-off time configure
  • Support hitless firmware upgrade
  • Compact size (18.35 mm × 93.26 mm × 8.50 mm)
  • Duplex LC Receptacle
  • Operating case temperature: 0℃ to 75°C
  • Maximum power consumption 18W (400GbE)
  • Single 3.3 V power supply
  • RoHS 2 compliant
Applications
  • Edge DCI 400GBASE-ZR application
  • 30~40Km unamplified 400GbE P2P link
  • Up to 120Km P2P link with amplification
Product Images

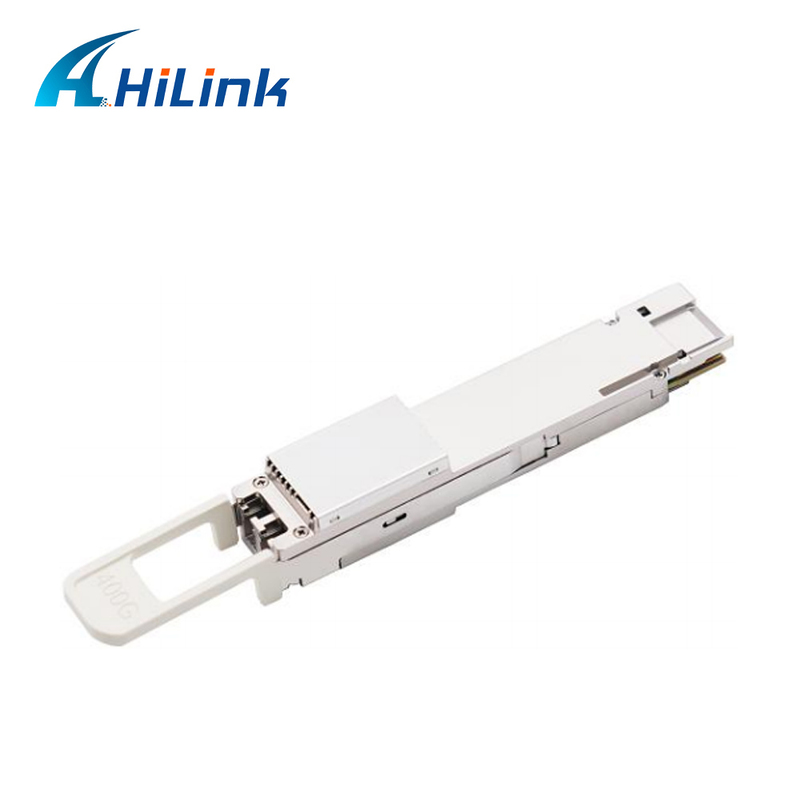

400G QSFP-DD ZR Coherent Transceiver 0-75℃ 0
Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
